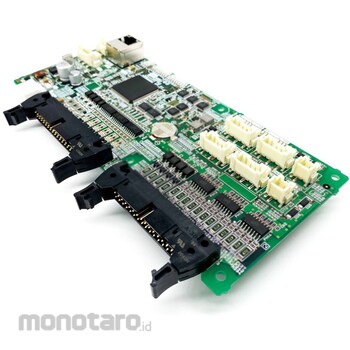

Thin, space-saving board type controllerCompact board type controllerThe thin, space-saving design allows it to be installed even in limited spaces.
Easy to operate and use the program
You can easily program without needing a manual by simply selecting from 20 different commands.
Ideal for embedded applications: Low-cost and equipped with various interfaces as standard, it is ideal for embedding in various devices.
Functionality can be expanded. By using additional boards such as input/output I/O boards and analog input boards, it can be used for a variety of purposes.
JTEKT Electronics (former Koyo Electronics Industries) JX-BASIC-EX2 source output
#Grup produk P112767707
Spesifikasi
| Board Dimensions (mm) | 180x80 |
|---|---|
| Calendar | Function: Yes Secondary battery (no need to replace, cannot be removed) |
| Connector | [Analog input] 5P connector *Please prepare by the customer [Analog output] 2P connector *Please prepare by the customer [Power supply] 3P connector *Please prepare by the customer |
| Input | [I/O] 24V DC, 16 points (16 points/common), (12 general-purpose points/4 high-speed points) sink/source, AWG2830P MIL connector *Please prepare by the customer |
| Input range | Voltage: 0 to 10 V / Current: 0 to 20 mA / Thermistor: 0 to 3 V |
| Memory | Retention: Yes (always retained) |
| Number of Input Points | [Analog input] 4ch |
| Number of Outputs | [Analog output] 2ch |
| Output | [I/O] DC 5 to 24V/0.3A, 16 points (8 points/common), (13 general-purpose points/3 high-speed points), sink/source, each model number, AWG2834P MIL connector *Please prepare by the customer |
| Output Range | Analog output: Voltage: 0 to 10 V, Current: 0 to 20 mA |
| Power Input (V) | DC24 |
| Program Memory Capacity | 32k step |
| Programming | Tool: JX Programming Software, Operating environment: Windows 10 / Windows 11 |
| Resolution | [Analog input] 12bit [Analog output] 12bit |
| Scalability | DI/DO: JX-40CDD1 (24 inputs/16 sink outputs)<br> JX-40CDD2 (24 inputs/16 source outputs), Analog input: JX-04DC (4 channels) *Up to two expansion boards can be added. Combinations are free. |
| Type of Insulation | [Analog input] Non-insulated [Analog output] Non-insulated |
| USB | Programming port: Micro USB Type-B |
| Various certifications | Standard: CE, UL |
