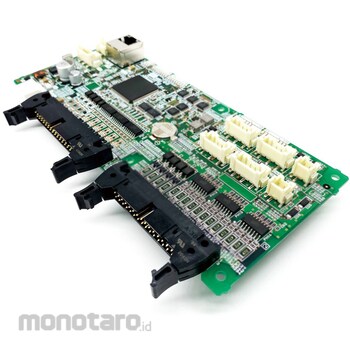

Thin, space-saving board type controllerCompact board type controllerThe thin, space-saving design allows it to be installed even in limited spaces.
Easy to operate and use the program
You can easily program without needing a manual by simply selecting from 20 different commands.
Ideal for embedded applications: Low-cost and equipped with various interfaces as standard, it is ideal for embedding in various devices.
Functionality can be expanded. By using additional boards such as input/output I/O boards and analog input boards, it can be used for a variety of purposes.
JTEKT Electronics (former Koyo Electronics Industries) JX-BASIC
#Grup produk P112767628
Spesifikasi
| Analog Input | Number of points, resolution, range, isolation, connection: None |
|---|---|
| Analog Output | Number of points, resolution, range, isolation, connection: None |
| Board Dimensions (mm) | 112x77 |
| Calendar | Function: None |
| Communication Standard | [Ethernet] Communication protocol: None, Port: None [Serial] Communication protocol: Modbus RTU (Master/Slave), General-purpose communication (ASCII), RS-232C: RJ12 (to be prepared by the customer), RS-485: 3P terminal block (plug included) |
| Connector | 4P terminal block (plug included) |
| Input | [I/O] 24V DC, 8 points (4 points / common), (4 general-purpose points / 4 high-speed points),<br> Sink/source, AWG24 to 1620P terminal block (plug included) |
| Memory | Retention: None |
| Output | [I/O] DC 5 to 24V/0.1A, 8 points (8 points/common), (8 general-purpose points), sink, AWG 24 to 16<br> 20P terminal block (plug included) |
| Power Input (V) | DC24 |
| Program Memory Capacity | 8k step |
| Programming | Tool: JX Programming Software, Operating environment: Windows 10 / Windows 11 |
| Scalability | DI/DO: JX-32CDD1 (16 inputs / 16 sink outputs) JX-32CDD2 (16 inputs / 16 source outputs), Analog input: JX-04DC (4 channels) *Up to two expansion boards can be added. Combinations are free. |
| USB | Programming port: Micro USB Type-B |
| Various certifications | Standard: CE |
