T-branch of DC24V power line is possible.
Since it has a built-in 110Ω terminating resistor, it can be used as a terminating resistor (switch ON / OFF switching).
Wiring and maintenance are easy because the terminal block can be removed from the unit.

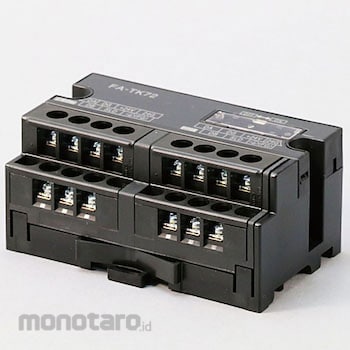

Mitsubishi Electric Engineering FA goods CC-Link Simple T-branch unit
#Grup produk P112757506
Spesifikasi
| Atmosphere | No corrosive gases |
|---|---|
| Installation Altitude (m) | 2000 or less |
| Installation Location | Inside the control panel |
| Insulation Resistance (MΩ) | 100 or more (between live part and earth) |
| Mass (g) | About 140 |
| Maximum Operating Current (A) | Signal: 2A, power, ground wire: 8A |
| Maximum Operating Voltage (V) | DC26.4 |
| Operating Temperature/Humidity Range | 0 to 55°C, 5 to 95% RH (no condensation) |
| Overvoltage Protection | II or less |
| Pollution Degree (Environment to Use) | 2 or less |
| Shock Resistance | 147m/ <sup>s2</sup> , 3 times each in X, Y, and Z directions (JIS B 3502, IEC61131-2 compliant) |
| Storage Temperature / Humidity Range | -25 to 75°C, 5 to 95% RH (no condensation) |
| Terminal Block | Terminal screw (M3 screw, self-lifting, 7.62 mm pitch), compatible wire, tightening torque "0.3 to 2 mm <sup>2</sup> (when using crimp terminal), 58.8 to 88.2 N.cm (6 to 9 kgf.cm)" |
| Unit Type | Screws: M4 x 0.7 mm x 15 mm or larger, tightening torque: 78 to 118 N cm (8 to 12 kgf cm), DIN rail: TH35-7.5Fe, TH35-7.5Al (JIS C 2812 compliant) |
