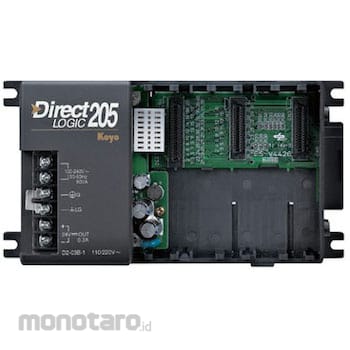

JTEKT Electronics (former Koyo Electronics Industries) DL205 series base unit
#Grup produk P112756604
Sebelum PPN:
Rp4.499.900 - Rp7.299.900
Ketersediaan:
Periksa Metode Pembayaran dan Estimasi pengiriman
Spesifikasi
| Ambient Humidity (% RH) | 30 to 95 (no condensation) |
|---|---|
| Ambient Temperature (°C) | (When stored) -20 to 70, (when used) 0 to 55 |
| Atmosphere | No corrosive gas |
| Input Voltage Range (V) | 85 to 132 VAC (100 V range), 170 to 264 VAC (200 V range), 47 to 63 Hz |
| Inrush Current (A) | Up to 30 |
| Insulation Resistance | >10m(DC500V) |
| Mounting | Mounting hole (4-M4) or DIN rail (conforms to EN5022) |
| Noise resistance | NEMA(ICS3-304) |
| Power Consumption | Up to 80VA |
| Power Supply | (External DC24V) Max.300mA |
| Power Supply Voltage | AC |
| Shock Resistance | Conforms to JIS C 0041, conforms to MIL STD 810C method 516.2 |
| Vibration Resistance | Conforms to JIS C 0040 sine wave vibration test method, conforms to MIL STD 810C method 514.2 |
| Withstand Voltage | 1 minute (1500 V AC between primary, secondary, and field ground) |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
This is the base unit for building the DL205 system.
Feature
Specification Two I / O modules can be installedUlasan Produk
