All-in-one controller with display that integrates display, operation, and control saves wiring and space!!
In addition to the standard DIO (input: 16 points, output: 16 points), DIO and AIO can be expanded with the TM3 expansion IO unit.
It can be flexibly adapted to various applications.
It also supports Pro-face Connect, enabling secure remote monitoring and remote maintenance.

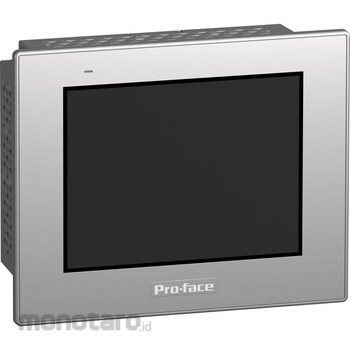

Pro-face (Schneider Electric) Display-equipped controller STC6000 series
#Grup produk P112756589
Spesifikasi
| Dimensions, Width W x Height H x Depth D (mm) | 169.5x137x60 |
|---|---|
| Display | 5.7 type (VGA) |
| Display Color | TFT color 262144 colors |
| Ethernet | [Standard] IEEE802.3i/IEEE802.3u, 10BASE-T/100BASE-TX, [Connector] Modular jack (RJ-45) x 1 |
| Memory | [Application memory] FLASH EPROM 64MB/[Backup memory] FLASH EPROM 320KB |
| Panel Cut Dimensions (mm) | H156xW123.5 |
| Power Supply | 24Vdc |
| Protocol | [CANopen] Built-in CANopen master (scheduled for support around August 2024) |
| Scalability | TM3 expansion IO unit (optional) (*Up to 2 units on the back/Up to 3 TM3 remote expansion modules*Cannot be used in conjunction with CANopen) |
| USB | USB2.0(Type A)x 1 ,USB 2.0(micro B)x 1 |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Feature
Specification [Serial] RS-232C/422/485x1Ulasan Produk
