These Brad(R) Micro-Change(R) M12 Field Installable Single Keyway (A-Coded) Connectors enable custom cables that can be assembled anywhere.
Brad(R) Micro-Change(R) M12 field installable connectors have gold-plated copper contacts with nickel-plated setscrews that can accommodate up to 18 AWG (0.75 mm2 ) cable.
IEC compliant M12 connectors. Suitable for harsh environments. IP67, NEMA6 rated vibration resistant. Part numbers 751-9154 and 751-9166 are available with cables from 3.3 to 6.6mm diameter with PG7 gland threads.
Part numbers 751-9150, 751-9157, 751-9160 and 751-9163 are available with cables from 4.1 to 8.1mm diameter with PG9 gland threads.

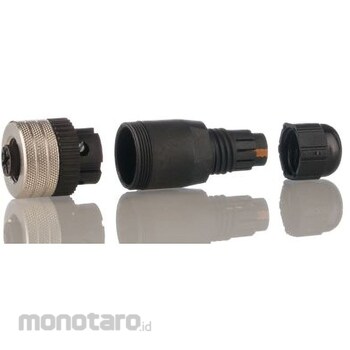

Molex Circular Connector, 4-pole, M12, Cable Mount, 1200710035
#Grup produk P112752282
Spesifikasi
| Connection Direction | Straight |
|---|---|
| Connector Size | M12 |
| Contact Gender | Female |
| IP Grade | IP67 |
| Material (Housing) | polyamide |
| Minimum Operating Temperature (°C) | -25 |
| Number of Poles | 4 |
| ROHS Directive (Corresponding to 10 Substances) | Correspondence |
| Rated Current (A) | 4 |
| Rated Voltage (V) | 250ac,300dc |
| Socket or Plug | Socket |
| Surface Mount Device | Cable mount |
