It is a 20m type for outdoor use, which is ideal for managing vehicles leaving the parking lot.
It is a versatile outdoor / indoor type with a detection distance of about 20 m (about 50 m when used indoors).
By using two sets, one-way detection such as detection only when leaving the parking lot is possible.
Uses a two-stage beam simultaneous blocking method that eliminates the effects of insects and fallen leaves when used outdoors.
Uses an anti-frost mechanism that can detect the beam constantly even if it is covered with frost or dew.
Achieves stable operation even in bad weather with a sensitivity margin of 10 times.
In addition to wall mounting, pole mounting is also possible.

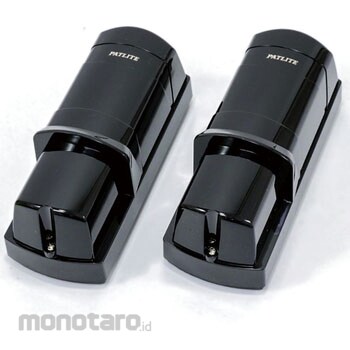

PATLITE (formerly Kasuga Electric) Beam sensor FE20A
#Grup produk P112735805
Spesifikasi
| Alarm Output | NC (.b) contact (alarm ... open), no-voltage output (contact capacity: DC28V0.2A) |
|---|---|
| Current Consumption (mA) | 38 (maximum) |
| Mass (kg) | 0.65 |
| Operating Temperature Range (°C) | -25 to 60 (humidity 95% or less) |
| Optical Axis Adjustment Range | ± 90 ° horizontal, ± 5 ° vertical |
| Rated Voltage (V) | DC10.5to28 |
| Where to Use | Outdoor / indoor |
