The number display and input / output display are easy-to-read green display. (Displayed numbers are green LED, character height 8 mm)
Equipped with a dustproof cover as standard equipment. The setting device can be operated from the top of the dustproof cover.
The front outer shape is a small size with a DIN size (72 x 72 mm) and a depth of 103.5 mm.
Built-in power supply for DC12V 50mA sensor.
* Mounting socket is sold separately.

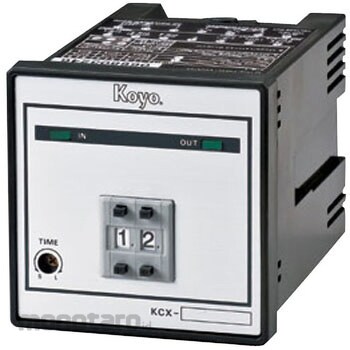

JTEKT Electronics (former Koyo Electronics Industries) Additive Single-Stage Preset Green Counter KCX Series
#Grup produk P112735382
Sebelum PPN:
Rp5.799.900 - Rp17.999.900
Ketersediaan:
Periksa Metode Pembayaran dan Estimasi pengiriman
Spesifikasi
| Input Voltage (V) | [Count input] (L) 0 to 2/(H) 6 to 30 [External reset] (L) 0 to 2/(H) 6 to 30 |
|---|---|
| Insulation Resistance (MΩ) | 20 or more (DC500V) |
| Mass (g) | 500 |
| Output Current (mA) | (Source) 2.5 / (Sink) 8.0 |
| Power Supply Voltage (V) | AC90to132/180to264(50/60Hz) |
| Power for Sensor | DC12V±2V 50mA |
| Service Life | Electrical/1 million times or more (AC250V resistive load) Mechanical/10 million times or more |
| Storage Temperature (°C) | -20to+55 |
| Type of Operation | For both A type (constant time output type, automatic reset) / B type (output holding type) |
| Type of Sign | For both embedded and stationary mounting |
| Withstand Voltage | AC2kV for 1 minute (between AC power supply terminal, E terminal and relay contact terminal) |
