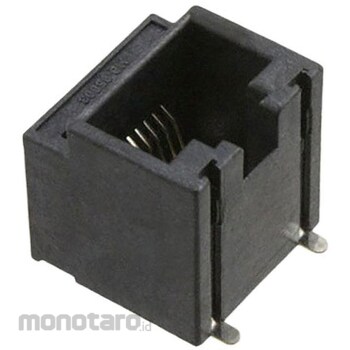

Molex + RJ45 Modular Jack +85 510 Series + 8 +/+ 8 poles + Cat3 + Vertical + Surface Mount + Female + Modular Jack

Specification Male/Female = Female LAN Category = Cat3 Mounting Type = Surface Mount Number of Positions = 8 / 8 Type = Modular Jack Orientation = Vertical Length = 15.08mm Width = 15.24mm Depth = 15.7mm Series = 85510 Contact Material = Copper Alloy Surface Treatment: Contacts = Gold over Nickel Molex 85510 Series Cat 3 Vertical Top Entry RJ Modular Jacks. 85510 Series Cat 3 Vertical Top Entry RJ11/RJ45 PCB Surface Mount Modular Jacks have black UL94V-0 high temperature thermoplastic housing and gold plating contacts. The mounting area has a pitch of 1.27 mm and is equipped with solder tabs for board retention. The panel cutout is small (see datasheet for details). See 90075 series for mating plugs.
