- The basic structure is a structure in which an arm is pre-installed on the inner shell of the Rosta suspension unit, and the outer shell is flange-shaped.
- Installation can be done with only one center bolt, and it is easy to install belt tension maintenance, conveyor belt scrapers, pressure rollers, etc.
- Basic SE model and RSE model with pulley idler pre-installed.

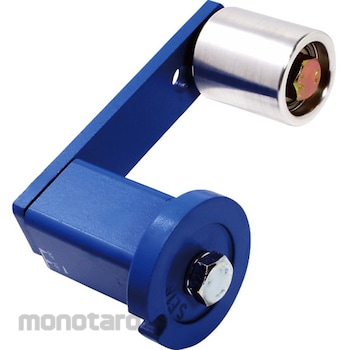

Miki pulley ROSTA Tensioner RSE Model RSE-45
#Grup produk P112600387
Spesifikasi
| Dimension A (mm) | 200 |
|---|---|
| Dimension B (mm) | 70 |
| Dimension D (mm) | 90 |
| Dimension G (mm) | 12 |
| Dimension H1 (mm) | 225 |
| Dimension L1 (mm) | 135 |
| Displacement (mm) | (S1)112.5(S2)90 |
| Load Range (N) | 0 to 2600 |
| Maximum Speed (rpm) | 4500 |
