Eliminates troubles caused by keys such as key processing unnecessary and key groove processing.
-The processing tolerances of the shaft and hub are general tolerances and do not require special finishing.
It has an integrated structure and a simple structure, and is easy to handle.
It has high torque and allowable transmission torque, and can withstand heavy thrust loads.
Zero thrust load
- Only radial load acts on the shaft and hub, and no thrust load is applied. It is a simple anti-virus specification with electroless nickel plating on the main body.
Miki pulley ETP bushing ETP-AC series (Simple anti-rust specification)
#Grup produk P112581161
Spesifikasi

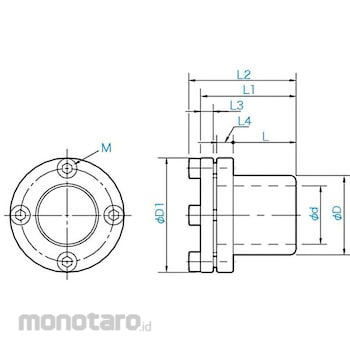

| Dimension D (mm) | 28 |
|---|---|
| Dimension D1 (mm) | 45 |
| Dimension L (mm) | 21 |
| Dimension L1 (mm) | 34 |
| Dimension L2 (mm) | 39 |
| Dimension L3 (mm) | 5.5 |
| Dimension L4 (mm) | 6.9 |
| Dimensions d (mm) | 19 |
| Hub Side Pressure (N/mm²) | 80 |
| Inertia Moment (kgm²) | 0.046x10⁻³ |
| Mass (kg) | 0.17 |
| Shaft Side Pressure (N/mm²) | 90 |
| Thread Size | 3-M5x12 |
