Ultra-compact, high-precision timer Easy time setting Easy to check operation
We have obtained UL and CSA standards.
Compliant with IEC61812-1.

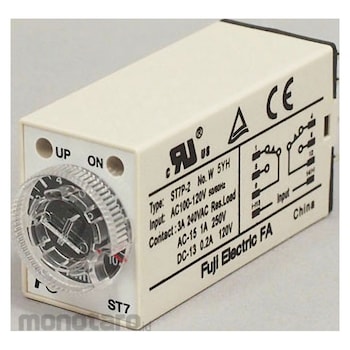

Fuji Electric Super Timer ST7P Series
#Grup produk P112578006
Spesifikasi
| Allowable Ambient Temperature (°C) | -10 to 50 (no freezing or condensation) |
|---|---|
| Control Output | 3A 240V AC (resistive load) |
| Insulation Resistance (MΩ) | 100 or more (at 500V mega) |
| Mass (g) | About 45 |
| Mechanical Durability | 50 million operations or more (No-load switching frequency 1800 operations / hour) |
| Minimum Applicable Load | 5 VDC, 1 mA (reference value) |
| Operation Mode | Ondelay |
| Return Time | 0.1 seconds or less (including halfway return) |
| Setting Error | ± 10% ± 0.02s (maximum scale value) |
| Shock Resistance (Destruction) | 1000m/s² (5 times each in 3 axis directions, up and down, left and right, front and back) |
| Shock Resistance (Malfunction) | 50m/s² (Up/Down, Left/Right, Front/Rear, 3 axis directions 2 times each) |
| Terminal Shape | Plug-in terminal |
| Vibration Resistance (Destruction) | 10 to 55Hz, double amplitude 0.75mm (up / down, left / right, front / rear three axis directions for 1 hour each) |
| Vibration Resistance (Malfunction) | 10 to 55Hz, double amplitude 0.5mm (up / down, left / right, front / rear 3 axis directions for 10 minutes each) |
| Withstand Voltage | 2000 VAC for 1 minute (between charged parts and non-charged metal parts) ; 1500 VAC for 1 minute (between control output and operation circuit) ; 1000 VAC for 1 minute (between discontinuous contacts) |
