Short body size multi-timer with 66.5 mm under the neck
Uses a direct reading time scale that does not require sexagesimal conversion. Improves resistance to waveform distortion of the power supply.
AC free power supply
0 scale instantaneous operation function

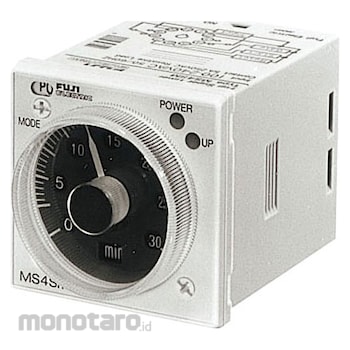

Fuji Electric Super timer MS4S series
#Grup produk P112577982
Spesifikasi
| Allowable Ambient Temperature (°C) | -10 to 55 (no freezing or condensation) |
|---|---|
| Applicable Standard | EMC standard compliant (EN50081-2, 50082-2) |
| Contact Configuration | Time limit 2c |
| Control Output | AC250V 5A(cosΦ=1) |
| Dimensions d1 (mm) | AC100-240 |
| Insulation Resistance (MΩ) | 100 or more (with DC500V mega) |
| Mass (g) | About 100 |
| Operation Indicator | Power applied: Green LED indicates Time up: Red LED indicates |
| Power Consumption | Approximately 1VA |
| Rated Voltage (V) | AC100 to 240 |
| Size | DIN48x48 |
| Type | Super Timer |
| Type of Connection | Plugin |
| Type of Operation | ON Start |
| Type of Sign | Surface, embedded |
| Type of control | Control time: 0.05s to 60h |
| Vibration Resistance (Destruction) | Double amplitude 0.75mm Frequency 10-55Hz (1 hour each in 3 axes: up / down, left / right, front / back) |
| Vibration Resistance (Malfunction) | Double amplitude 0.5mm Frequency 10-55Hz (10 minutes each in 3 axes of up / down, left / right, front / back) |
