As a bimetal thermal protection relay, it protects against burning due to overload and restraint of the motor.
The reset method can be switched manually or automatically.
Manual trips are possible, and trips are free.
It is easy to check the operation.
It is easy to set the settling current value.
1a1b high contact reliability Independent auxiliary contact is adopted, and a and b contacts can use different voltage.

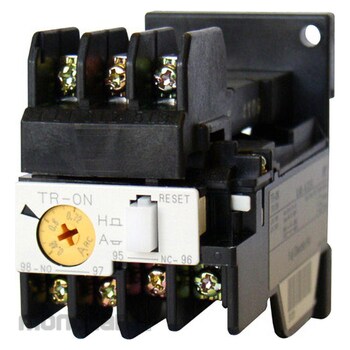

Fuji Electric Standard Thermal Relay
#Grup produk P112577520
Spesifikasi
| Auxiliary Contact | 1a1b |
|---|---|
| Minimum Applicable Load | DC5V/ 3mA |
| Operating Patterns | Standard type |
| Rated Frequency (Hz) | 50-60 |
| Rated operating current (A) | Auxiliary Circuit Rating AC-15 (coil load): 3 (AC24V), 2.5 (AC100-120V), 2 (AC200-240V), 1 (AC380-440V), 0.6 (AC500-600V) DC-13 (coil load): 1.1 (DC24V), 0.28 (DC100-120V), 0.14 (DC200-240V), - (DC380-440V), - (DC500-600V) |
| Structure | For single installation |
| Type | Standard Thermal Relay |
| Type of Resetting | Manual |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Feature
SpecificationTrip class: 10A
