A magnetic proximity switch with the same dimensions as the micro switch (JIS C 4505).
* Magnet element sold separately

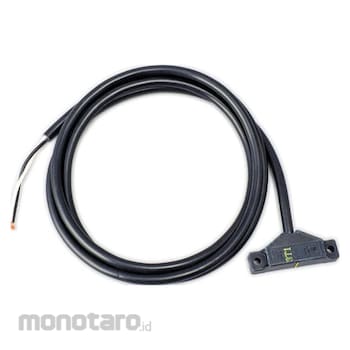

Fuji Electric Proximity Switches, Magnetically Operated Reed Switches
#Grup produk P112576682
Spesifikasi
| Contact Configuration | (Contact bounce time) 0.5ms or less |
|---|---|
| Differential Distance | 1 to 14mm (vertical operation) |
| Insulation Resistance (MΩ) | 100 or more (at 500 VDC megger) |
| Mechanical life | 10 million times or more |
| Number of Contacts | 1NO (Normally open) |
| Operating Distance (mm) | (Vertical operating distance) 20-27 |
| Operating Time | 0.8 ms or less |
| Power Supply | 3-phase 200V |
| Protection Class | IP67 (IEC standard) |
| Rated operating current (A) | 0.5 |
| Rated operating voltage (V) | AC/DC220 |
| Return Time | 0.05ms or less |
| Shock Resistance (m/s²) | 300 |
| Type | Economic type switch |
| Vibration Resistance | Double amplitude 1.5mm 10-55Hz (2 hours each in 3 directions of X, Y, Z) |
| Withstand Voltage | (Between terminal and ground) AC1500V 1 minute (when attached to insulation) |
