It is a product that complies with the Electrical Appliance and Material Safety Law.
It is easy to distinguish the coil voltage by the color of the coil decorative paper.

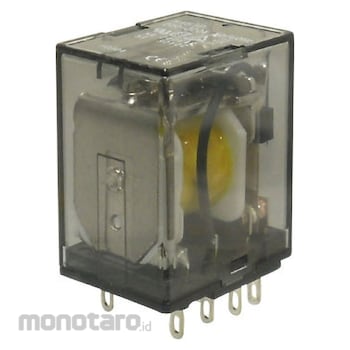

Fuji Electric Mini Control Relay
#Grup produk P112575629
Spesifikasi
| Coil Rated Voltage (V) | AC200 |
|---|---|
| Contact Configuration | 3c |
| Frequency (Hz) | 50/60 |
| Insulation Resistance (MΩ) | 100 or more (at 500 VDC megger) |
| Mass (g) | About 33 |
| Number of Poles | 3 |
| Outer Dimensions, Width W x Depth D x Height H (mm) | 21.0x27.8x40.6 |
| Power Consumption (VA) | 50Hz: Approx. 1.2/1.4, 60Hz: Approx. 1.0/1.2 |
| Protection Class | In a case |
| Rated Insulation Voltage (V) | 250 |
| Rated Voltage (V) | AC200 |
| Standard | UL certified, CSA certified, TUV certified, JIS4530 compliant |
| Terminal Shape | Plug-in terminal |
| Type | Control relay |
| Type of Connection | Standard type |
| Type of Sign | Plugin |
| Withstand Voltage | Between coil and contact, and between C contacts: AC2000 each; Contact gap: AC1000; Between socket terminals: AC2000 |
