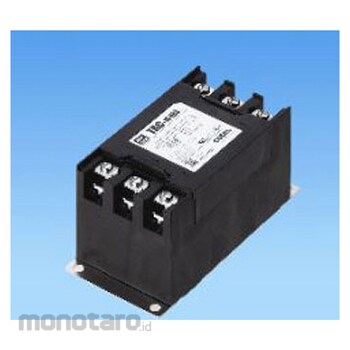

Cosel Noise Filter TAC Series
#Grup produk P112562768
Sebelum PPN:
Rp979.900 - Rp30.999.900
Ketersediaan:
Periksa Metode Pembayaran dan Estimasi pengiriman
Spesifikasi
| Insulation Resistance (MΩ) | 100 (DC500V min normal temperature and humidity) [between terminal and mounting plate] |
|---|---|
| Operating Temperature (°C) | -40 to 85 (see derating characteristics) |
| Rated Voltage (V) | Three-phase three-wire type 500 (maximum usage: 528) [50/60Hz] |
| Safety Standard | UL1283, CSA C22.2 No.8(C-UL), DIN EN60939 VDE0565 Teil3-1, ENEC |
| Series | TAC |
| Storage Humidity (%RH) | 20 to 90 (no condensation) |
| Storage Temperature (°C) | -40 to 85 |
| Type | 150kHz-1MHz high attenuation type |
| Vibration (m/s²) | 196.1 [10 to 55Hz (2G) cycle 3 minutes each in X, Y, and Z directions for 1 hour] |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Maximum voltage used 528V: Supports 10% voltage fluctuation of 480V system input Leakage current can be selected Quick and easy push-down type terminal block adopted (with screw drop prevention function)
