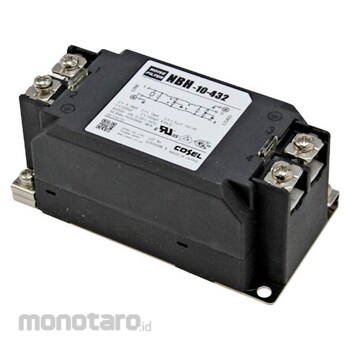

Cosel NBH-10-432 series
#Grup produk P112562467
Spesifikasi
| Capacitor Capacitance (F) | (nominal value) CY1: 3300p, CY2: 1000p |
|---|---|
| Insulation Resistance (MΩ) | 100M (DC500V min, normal temperature and humidity) [between terminal and mounting plate] |
| Mass (g) | 320(max) |
| Operating Temperature (°C) | -40 to 85 (see derating characteristic A) |
| Outer dimensions, Width W x Height H x Depth D (mm) | 53×43×104(W×H×D) |
| Rated Current (A) | 10 |
| Rated Voltage (V) | AC1Φ250/DC250 |
| Safety Standard | UL1283, CSA C22.2 No.8 (C-UL), DIN EN60939 VDE0565 Teil 3-1, ENEC (except for DC input) |
| Series | NBH |
| Shape | With cover |
| Storage Temperature (°C) | -40 to 85 |
| Terminal Shape | Screw |
| Type | 9kHz-10MHz high attenuation type (two-stage filter) |
| Vibration (m/s²) | 19.6 [10 to 55Hz (2G) cycle 3 minutes each in X, Y, and Z directions for 1 hour] |
| Voltage drop (V) | 1(max) |
