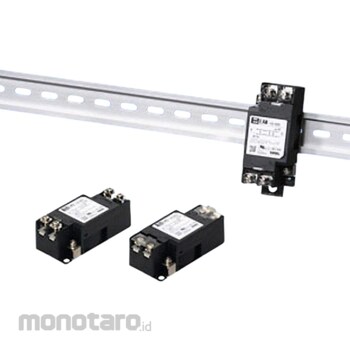

Cosel EAP-16-472 series
#Grup produk P112561343
Spesifikasi
| Capacitor Capacitance (F) | (Nominal value) 4700p |
|---|---|
| DC Resistance (Max.) | 20(mΩ) |
| Insulation Resistance (MΩ) | 500M (DC500V min at room temperature and humidity) [between terminal and mounting plate] |
| Mass (g) | 170(max) |
| Operating Temperature (°C) | -40 to 85 (see derating characteristics) |
| Outer dimensions, Width W x Height H x Depth D (mm) | 39×30×85(W×H×D) |
| Rated Current (A) | 16 |
| Rated Voltage (V) | AC1Φ250/DC250 |
| Safety Standard | UL1283, CSA C22.2 No.8 (C-UL), DIN EN60939 VDE0565 Teil 3-1, ENEC (except for DC input) |
| Series | EAP |
| Storage Humidity (%RH) | 20 to 90 (no condensation) |
| Storage Temperature (°C) | -40 to 85 |
| Type | External impulse attenuation type |
| Vibration (m/s²) | 19.6 [10 to 55Hz (2G) cycle 3 minutes each in X, Y, and Z directions for 1 hour] |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Feature
=Specification&""&DIN rail mounting type
