STANDARD ACCESSORIES:
- XZ-axes auto. lubrication system
- Metric / inch gear box
- Coolant device
- Longitudinal apron motion feed
1.Tailstock (for LA)
2. Tailstock two steps device (for LG)
- 3-jaw scroll chuck 7" (for LA)
- 1. 3-jaw scroll chuck 9" (for LG)
- Back plate of chuck
- Steady rest 6"
- Center sleeve
- Dead center
- Tool post screw wrench
- Level pads
- Tools & tool box
- Operation manual
OPTIONAL ACCESSORIES:
- Follow rest
- 4-jaw independent chuck 12"
- Face plate 14"
- Digital readout
- Halogen light
- Back splash guard
- 3-Jaw strong scroll chuck(instead of 3-jaw scroll chuck)
- Quick change tool post (instead of tool post )
- CE equipment
- Taper turning attachment
- Grinder
- Hydraulic copy attachment

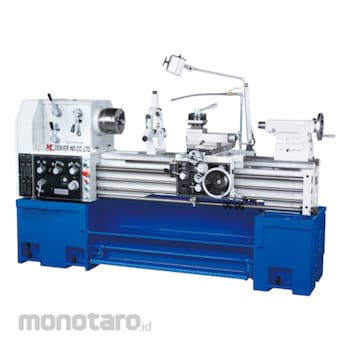

DENVER INDUSTRIAL High Speed Precision Lathe Machine
#Grup produk P112558862
Spesifikasi
| Bed Length (mm) | 2490 (98.03inch) |
|---|---|
| Carriage Width (mm) | 485 (19.09inch) |
| Cross Slide Travel (mm) | 250 (9.84inch) |
| Diameter Barrel (mm) | Ø52 (2.05inch) |
| Distance Between Centers (mm) | 1500 (59.06inch) |
| Number of Spindle Speeds | 12 Steps |
| Spindle Bore Diameter (mm) | A2-6 - ø70 mm (2.76inch) / D1-6 - ø62 mm (2.44inch) |
| Spindle Nose | A2-6 / D1-6 |
| Spindle Speed Range (rpm) | 25 - 1800 |
| Swing Over Bed (mm) | 460 (18.11inch) / 560 (22.05inch) |
| Swing Over Cross Slide (mm) | 280 (11.02inch) / 380 (14.96inch) |
| Taper of Barrel | M.T. 4 |
| Tool Shank (mm) | 20x20 (0.79x0.79inch) |
| Top Slide Travel (mm) | 125 (4.92inch) (Compound Rest Travel) |
| Travel of Barrel (mm) | 140 (5.51inch) |
| Width Of Bed (mm) | 317 (12.5inch) |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Feature
FEATURES : (for LA, LG)- One piece Meehamite casting machine base.
- Metric & inch gear box with full range of inch, metric, DP, MP threading and multiple threads, all function is
reached without change gear.
- Apron enforced oil supply with safety device is used to avoid collision.
- Bed ways & surface of compound rest have been ultra-frequency heat treated& ground to provide a longer life.
- Cross way feeding guides screw: 2points support for heavy cutting.
- Length safety foot brake.
- Dynamically balanced alloy spindle is adopted 3 points of bearing support.
- The gears in headstock and spindle are hardened & precision ground.
