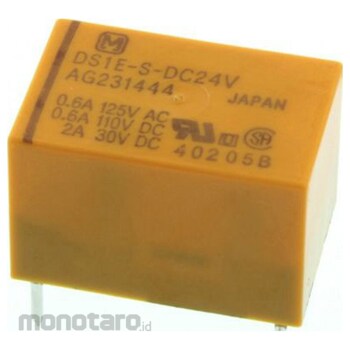

Panasonic Signal Relay SPST 24V dc DS
#Grup produk P112555883
Spesifikasi
| Coil Voltage (V) | 24/dc |
|---|---|
| Contact Configuration | SPST |
| Dimensions (mm) | 20x9.9x9.9 |
| Height (mm) | 9.9 |
| Latch | None |
| Length (mm) | 9.8 |
| Maximum Switching Power (DC W) | 60 |
| Maximum Switching Voltage (DC V) | 220 |
| ROHS Directive (Corresponding to 10 Substances) | Correspondence |
| Switching Current (A) | 3 |
| Terminal Type | Board pin |
| Type of Sign | Board mounting |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Feature
SpecificationUL, CSA. DS Series. These highly sensitive miniature relays for PCB mounting all have the same height (9.8mm) and width (9.9mm), making them easy to mount on PCBs. The high-performance polarized magnetic circuit provides excellent shock and vibration resistance, making them suitable for use in harsh environments. Single stable relay with highly reliable gold-clad contacts. Rated power consumption: 200mW. DIP type. Sealed construction allows for automatic cleaning. Applications: communication equipment, measuring equipment, computer equipment, etc.
