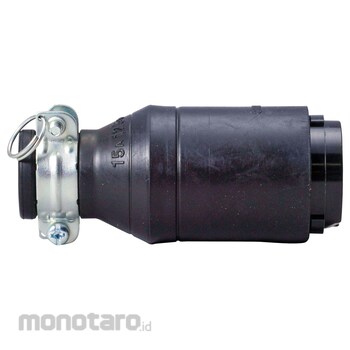

Panasonic Rubber Cord Connector Body 2P
#Grup produk P112555209
Spesifikasi
| Compatible Cable (mm²) | 1.25.2 |
|---|---|
| Heat Resistance | Leave at 80 ° C ± 3 ° C for 7 hours (thermoplastic resin part), leave at 100 ° C ± 3 ° C for one hour (thermosetting resin part) |
| Holding power (N) | 10 to 60 |
| Insulation Resistance (MΩ) | [500V insulation resistance meter] Between charged metal parts with different polarity: 100 or more Between charged metal parts and non-charged metal parts touched by people (including insulators touched by humans): 100 or more |
| Number of Poles | 2P |
| Open and close | 15A 125V load power factor approx. 0.6 switching rate approx. 20 times / min: continuous 5 000 times 22.5A 125V load power factor approx. 1 switching rate approx. 6-10 times / min: continuous 100 times |
| Outlet Shape | 2P 15A 125V |
| Rated Current (A) | 15 |
| Rated Voltage (V) | 125 |
| Shape | Flat blade type |
| Temperature rise | 30 ° C or less |
| Type | Crimp terminal connection possibility O |
| Withstand Voltage (V) | Between charged metal parts with different polarities: 1250 (1 minute) Between charged metal parts and non-charged metal parts touched by people (including insulators touched by humans): 1250 (1 minute) |
