* Reverse connection is not possible.
* For the wire to be used, select a compatible wire size that matches the rated current value.
* Remove the wire before measuring the insulation resistance between wires.
* When using for a frequency control (inverter, etc.) circuit, be sure to install it on the primary side of the inverter.
* The remote control breaker may break if AC power is applied directly to the instantaneous excitation type operation terminal.
* Avoid frequent opening and closing such as inching operations.
* This product has a built-in permanent magnet, so handle it so that metal powder does not adhere to it.
Panasonic Remote control leakage breaker CLE type (instantaneous excitation type) JIS agreement type series for board
#Grup produk P112554705
Spesifikasi
| Connectable Stranded Wire (mm²) | (Main circuit) 14, (Operating circuit) 2 |
|---|---|

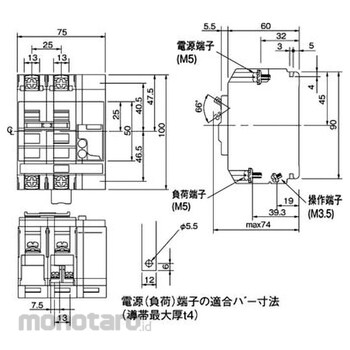

| Dimensions (mm) | (H)100x(W)75x(D)60 (74 including handle) |
| Frame (AF) | 30 |
| Mass (kg) | 0.56 |
| Number of Poles/Elements | 2P2E |
| Operating Time | Within 0.1 seconds |
| Rated Breaking Capacity (kA) | 5(AC100V)/5(AC100/200V)/2.5(AC200V) |
| Rated Voltage (V) | AC100-100/200-200 shared |
| Terminal Shape | (Main circuit) Full-up terminal, (Operating circuit) Up terminal |
| Terminal screw | (Main circuit) M5, (Operating circuit) M3.5 |
| Tightening Torque (N m) | (Main circuit) 2.0 to 2.5, (Operating circuit) 0.5 to 0.7 |
