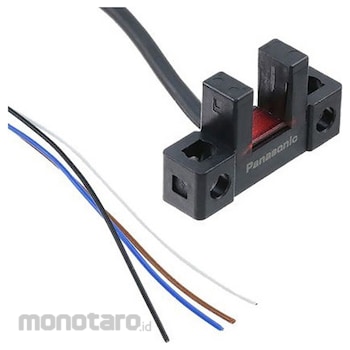

Panasonic Photoelectric sensor fork type detection range 6 mm
#Grup produk P112551300
Spesifikasi
| AS ONE Part Number | 65-7340-74 |
|---|
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
PM-45 series U-shaped compact photoelectric sensor Panasonic PM-45 series ultra-small U-shaped micro photoelectric sensor. This PM series sensor is a through-beam sensing type with an emitter and receiver housed in a single U-shaped housing. The large operating indicator that lights up makes it easy to check the operating status from above or from the side. Stress is concentrated in areas such as cables and internal circuit connections.
Feature
Specification● Sensor style: fork-shaped ● Detection type: Through beam ● Detection range: 6 mm ● Output type: NPN ● Electrical connection: Cable: 3 m ● Maximum DC voltage: 24V ● Connection method: Cable ● Light source: Infrared ● IP protection grade: IP64●Current Max: 50 mA●Response time: 20 μs, 80 μs●Material: PBT (enclosure), polycarbonate (display part)●Representative standard: IEC
