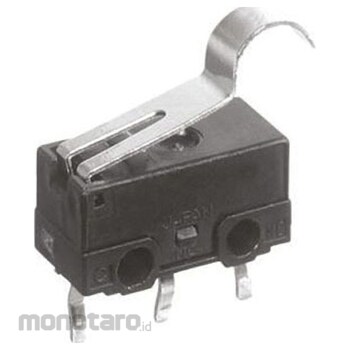

AH1 Ultra-miniature High Precision Micro SwitchThis ultra-miniature micro switch is available in a variety of terminal and actuator styles. Its compact size of 12.8 x 6 x 8.5 mm allows it to be used in the smallest possible equipment.This ultra-miniature micro switch is typically used in applications such as computer mice, mobile phone chargers, and car key position detection devices.
Integral molded terminal block prevents solder flux from entering the housing Compact size: 12.8
Panasonic Microswitch Simulated Roller Lever Solder 1 set 50 pieces
#Grup produk P112549581
Spesifikasi
| AS ONE Part Number | 65-7798-37 |
|---|
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Feature
Specification●Quantity: 1 tube (50 pieces)●Actuator type: Simulated roller lever●Termination style: Solder●Contact current rating: 1 A @ 30 V dc●Contact configuration: SP-CO●Operating force: 0.26 N●Operating temperature min: -25°C●Operating temperature max: +85°C●Contact material: Silver nickel alloy●Mechanical life: 10^6 Operations●Release force: 0.02 N●Operating temperature range: -25 → +85°C●Code number: 173-8818
