AH1 Ultra-miniature High Precision Micro SwitchThis ultra-miniature micro switch is available in a variety of terminal and actuator styles. Its compact size of 12.8 x 6 x 8.5 mm allows it to be used in the smallest possible equipment.This ultra-miniature micro switch is typically used in applications such as computer mice, mobile phone chargers, and car key position detection devices.
One-piece molded terminal block prevents solder flux from entering the housing Compact size: 12.8 x 6 x 8.5 mm Flat terminal shape for easy soldering

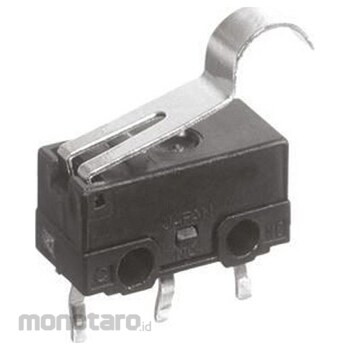

Panasonic Microswitch Simulated Roller Lever PCB
#Grup produk P112549484
Spesifikasi
| AS ONE Part Number | 65-7840-28 |
|---|
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Feature
Specification●Actuator Type: Simulated Roller Lever●Termination Style: PCB●Contact Current Rating: 1 A @ 30 V dc●Contact Configuration: SP-CO●IP Protection Rating: IP40●Operation Force: 0.26 N●Operating Temperature Min: -25°C●Operating Temperature Max: +85°C●Contact Material: Silver Nickel Alloy●Mechanical Life: 10^6 Operations●Release Force: 0.02 N●Operating Temperature Range: -25 → +85°C●Code Number: 699-5288
