Panasonic Microswitch Plunger pin Solder
#Grup produk P112549420
Spesifikasi
| AS ONE Part Number | 65-7840-68 |
|---|
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description

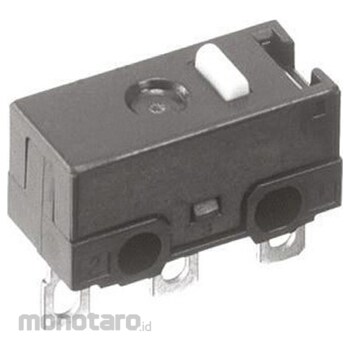

AH1 Ultra-miniature High Precision Micro Switches These ultra-miniature micro switches are available in a variety of terminal and actuator styles. Their compact size of 12.8 x 6 x 8.5 mm allows them to be used in the smallest possible equipment.
Feature
Specification●Actuator Type: Plunger Pin●Termination Style: Solder●Contact Current Rating: 2 A @ 30 V dc●Contact Formation: SP-CO●Operating Force: 1.47 N●Operating Temperature Min: -25°C●Operating Temperature Max: +85°C●Contact Material: Silver Nickel Alloy●Mechanical Life: 5 x 10^5 Operations●Release Force: 0.29 N●Operating Temperature Range: -25 → +85°C●Code Number: 699-5314
