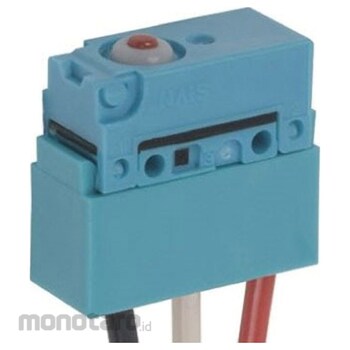

Panasonic Micro Switch Plunger Pin Through Hole
#Grup produk P112549004
Spesifikasi
| AS ONE Part Number | 65-7839-43 |
|---|---|
| Allowable Operating Speed (m/s) | 0.001 to 0.5 |
| Applicable Tightening Torque (N m) | M1.2: 0.098 or less, M2.3/M3: 0.29 or less |
| Contact Material | AgNi alloy |
| Contact Type | Switching type |
| Insulation Resistance (MΩ) | over 100 |
| Mounting Screw Spacing (mm) | M2.3:9.5 |
| Operating Position OP (mm) | 8.4±0.3 |
| Overtravel (OT) | (Minimum) 0.4mm |
| Pretravel (PT) | (Max)0.6mm |
| Protection Class | IP67 |
| Rated Resistance Load Current (A) | AC125V/AC250/DC30V:2,DC125:0.4 |
| Release Force (N) | (Min) 0.15 |
| Terminal Shape | Bottom-out lead wire |
| Terminal Type | Through hole |
| Type Of Actuator | Pin push button |
| Withstand Voltage (V) | Between non-continuous terminals: AC1000/1 minute, between each terminal and non-current-carrying metal part: AC1500/1 minute, between each terminal and earth: AC1500/1 minute |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Turquoise Switch (IP67)
Turquoise blue sealed switches, durable in harsh environments Switch mechanism is ultrasonically stretched for full shielding Two-color molded elastomer technology, an industry first Protection rating: IP67. Does not apply to terminal type terminals.
Feature
SpecificationCode number: 352-5170
