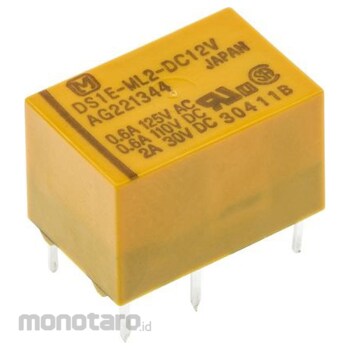

Panasonic High-sensitivity board signal relay DS series
#Grup produk P112546609
Spesifikasi
| Contact | BBM |
|---|---|
| Contact Configuration | 1c |
| Contact Material | Ag clad with Au |
| Dimensions (mm) | 15x9.9x9.9 |
| Insulation Resistance (MΩ) | Initial: 100 or more (measured at the same points as for the withstand voltage section using a 500V DC insulation resistance tester) |
| Mass (g) | About 3 |
| Maximum Allowable Contact Current (A) | 3 |
| Maximum Allowable Contact Voltage (V) | 220(DC),250(AC) |
| Minimum Applicable Load | 10μA 10mV DC |
| Operating Time (ms) | 10 or less (at rated coil voltage, not including contact bounce/at 20°C) |
| Protection Class | Plastic seal |
| Shock Resistance (Destruction) | 980m/s² (Half-sine pulse: 6ms) |
| Shock Resistance (Malfunction) | 490m/s² (Half-sine pulse: 11ms, detection time: 10μs) |
| Standard | UL/CSA |
| Terminal Shape | Printed circuit board terminal |
| Vibration Resistance (Destruction) | 10 to 55Hz (double amplitude: 5mm) |
| Vibration Resistance (Malfunction) | 10 to 55Hz (double amplitude: 3.3mm, detection time: 10μs) |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Feature
SpecificationUL, CSA.DS Series Bistable Relays. Three types of Bistable Relays equipped with two coils are available. Ideal for use in telecommunications equipment due to their excellent dielectric strength.
