* Reverse connection is not possible.
* For the wire to be used, select a compatible wire size that matches the rated current value.
* When using the 3P type for 1Φ3W, connect the neutral wire to the center pole. In this case, open phase protection of the neutral wire cannot be performed.
* The alarm switch and auxiliary switch are terminal block type (3 terminals).
* Avoid frequent opening and closing such as inching operations. (Electrical opening and closing function: 100,000 times) (AC3-5-4-3)
* This product has a built-in permanent magnet, so handle it so that metal powder does not adhere to it.
* Remove the wire before measuring the insulation resistance between wires.
* Cannot be used for frequency control (inverter, etc.) circuits.
Panasonic Green Power Remote Earth Leakage Breaker YR Type Motor Protection Instant Excitation Type JIS Agreement Series
#Grup produk P112546089
Spesifikasi
| Connectable Stranded Wire (mm²) | (Main circuit) 2-14, (Operating circuit) 0.5-1.25 |
|---|---|

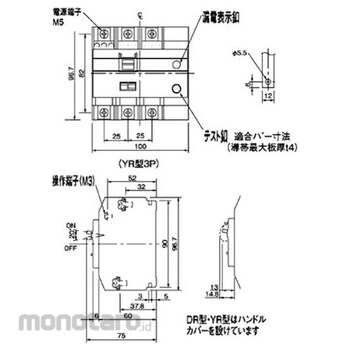

| Dimensions (mm) | (H)96.7x(W)100x(D)60(73 including handle) |
| Frame (AF) | 30 |
| Mass (kg) | 0.85 |
| Number of Poles/Elements | 3P3E |
| Operating Circuit Voltage (V) | AC200 |
| Operating Time | (Leakage) within 0.1 seconds |
| Rated Breaking Capacity (kA) | 2.5 |
| Rated Sensitivity Current (mA) | 30 |
| Rated Voltage (V) | AC200 only |
| Terminal Shape | (Main circuit) Full-up terminal, (Operating circuit) Up terminal |
| Terminal screw | (Main circuit) M5, (Operating circuit) M3 |
| Tightening Torque (N m) | (Main circuit) 2.0 to 2.5, (Operating circuit) 0.4 to 0.7 |
