Conforms to JIS agreement type modules.
Achieves 3 roles per unit with electric circuit protection + remote opening / closing function and electric leakage protection.
* Reverse connection is not possible.
* For the wire to be used, select a compatible wire size that matches the rated current value.
* When using the 3P type for 1Φ3W, connect the neutral wire to the center pole. In this case, open phase protection of the neutral wire cannot be performed.
* The alarm switch and auxiliary switch are terminal block type (3 terminals).
* Avoid frequent opening and closing such as inching operations. (Electrical opening and closing function: 100,000 times or more)
* This product has a built-in permanent magnet, so handle it so that metal powder does not adhere to it.
* Remove the wire before measuring the insulation resistance between wires.
* When using in a frequency control (inverter, etc.) circuit, be sure to install it on the primary side of the inverter.

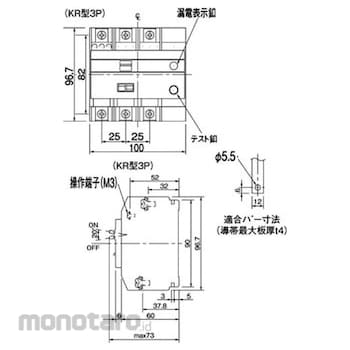

Panasonic Green power remote earth leakage breaker KR type (instantaneous excitation type) JIS agreement type series
#Grup produk P112546061
Sebelum PPN:
Rp3.599.900 - Rp5.099.900
Ketersediaan:
Periksa Metode Pembayaran dan Estimasi pengiriman
Spesifikasi
| Connectable Stranded Wire (mm²) | (Main circuit) 2-14, (Operating circuit) 0.5-1.25 |
|---|---|
| Frame (AF) | 30 |
| Operating Time | (Leakage) within 0.1 seconds |
| Terminal Shape | (Main circuit) Full-up terminal, (Operating circuit) Up terminal |
| Terminal screw | (Main circuit) M5, (Operating circuit) M3 |
| Tightening Torque (N m) | (Main circuit) 2.0 to 2.5, (Operating circuit) 0.4 to 0.7 |
