* Reverse connection is possible. Reverse connection is not possible when using 400AF415V.
* For the wire to be used, select a compatible wire size that matches the rated current value.
* Remove the wire before measuring the insulation resistance between wires.
* When using 3P for 1Φ3W, connect a neutral wire to the middle pole. In this case, open phase protection of the neutral wire cannot be performed.
* Compatible with lightning surges and harmonics (inverters, etc.). For frequency control circuits such as inverters, be sure to install them on the primary side of the inverter.

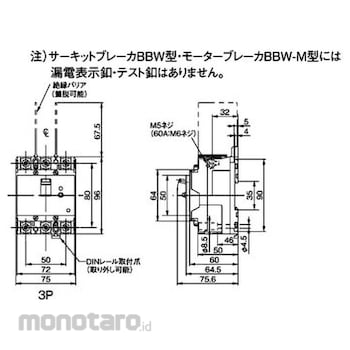

Panasonic Earth Leakage Breaker BKW Type JIS Agreement Type Series
#Grup produk P112543365
Spesifikasi
| Applicable crimp terminal | (Nichifu) 5.5-5 |
|---|---|
| Connectable Stranded Wire (mm²) | 2 to 14 |
| Frame (AF) | 50 |
| Mass (kg) | 0.5 |
| Number of Poles/Elements | 3P3E |
| Operating Time | Within 0.1 seconds |
| Operating Time (s) | Within 0.1 |
| Overcurrent Tripper Type | Electromagnetic |
| Rated Breaking Capacity (kA) | 2.5(AC200V)/2.5(AC100V) |
| Rated Current (A) | 30 |
| Rated Sensitivity Current (mA) | 30 |
| Rated Voltage (V) | AC100-200 |
| Terminal Shape | Full up terminal |
| Terminal screw | M5 |
| Tightening Torque (N m) | 2 to 2.5 |
| Type | BKW-50C |
| Type of Connection | Surface type (full-up terminal) |
| Voltage Rating (V) | Leakage sensor: 80 to 242 |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Feature
SpecificationDIN rail mountable
