*The monitor slave clock and slave clock amplifier cannot be used alone. Be sure to connect it with the TD9100KN series when using it. Also, it cannot be connected to the wall-mounted TA9400KN series and TA9500KN series.
*A total of 10 child clock amplifier circuits can be connected to one program timer.
*The child clock amplifier comes with one DIN connector cord (approximately 1.5 m) for connection to the program timer.
*The child clock cannot be driven by the TD9100KN series alone.
*Rack mounting brackets are sold separately.
*
*External dimensions do not include rack mounting hardware.
*
*External dimensions do not include protrusions such as terminal blocks.
*
*The radio wave reception function requires a separate long wave/GPS reception unit (TDGP9000) or FM antenna.

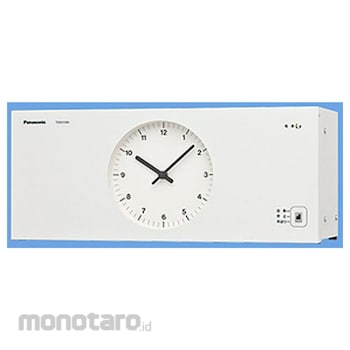

Panasonic Child clock amplifier
#Grup produk P112540906
Spesifikasi
| Dimensions, Vertical x Horizontal x Height (mm) | External size: 176 x 420 x 159 |
|---|---|
| Number of Circuits | 1 |
| Shape | EIA rack mount type |
| Suitable For | Rack mounting bracket (sold separately): TD93103727N |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Feature
SpecificationNumber of slave clocks driven: 30 (when 1 piece is 12mA)
