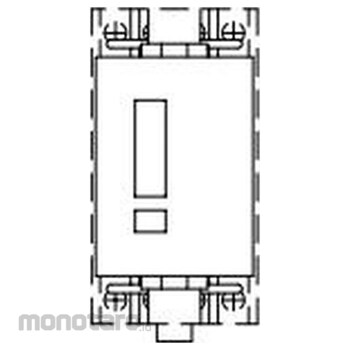

Panasonic Central monitoring terminal 1 control 2 monitoring terminal

*Please be sure to use a shielded cable for the signal line.
*
*It is strictly prohibited to perform pressure tests or megger tests with the terminal device inserted.
*
*Please use indoor wiring only for monitoring wiring. Also, separate the wiring from the high voltage generator noise source.
*
*When driving a magnetic contactor with this terminal, be sure to use a magnetic contactor with a surge absorption element.
*
*Regarding induced noise (lightning), if noise such as lightning is induced into signal lines or control and monitoring lines, it may cause damage to the monitoring panel and terminal equipment, so please use a surge killer (BNA7215, BNA7211, etc.). Attach it to the signal line and monitoring line of each field panel.
