Circuit breaker equipped with an earth leakage monitoring function.
In the unlikely event of an electric leakage, you will be notified by an alarm without interrupting the circuit.
* Reverse connection is not possible.
* Use the dedicated bar crimping terminal for the stranded wire 3.5 mm 2 , 5.5 mm 2 , 8 mm 2.

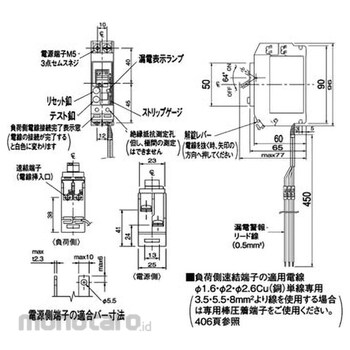

Panasonic Can touch breaker with leakage alarm
#Grup produk P112539326
Spesifikasi
| Alarm Output | Lead wire connection method |
|---|---|
| Contact Capacity | AC125V: (Resistive load) 0.5A, (Inductive load) 0.5A AC250V: (Resistive load) 0.5A, (Inductive load) 0.5A DC30V: (Resistive load) 2A, (Inductive load) 2A |
| Contact Configuration | 1C |
| Frame (AF) | 50 |
| Mass (kg) | 0.17 |
| Number of Poles/Elements | 2P2E |
| Operating Time | (Alarm) Within 0.1 seconds |
| Rated Breaking Capacity (kA) | 5(1Φ3W),2.5(1Φ2W) |
| Rated Sensitivity Current (mA) | 30 |
| Rated Voltage (V) | AC200 only |
| Suitable Terminal | (Crimp terminal) 2-5, 5.5-5, 8-5S (Quick connection terminal) Φ1.6, Φ2.0, Φ2.6 |
| Terminal Shape | (Power side) Crimp terminal, (Load side) Quick connection terminal |
| Type of Resetting | (Alarm) Manual reset (push button) |
