The special stepped foot and 30deg sharp needle ensures measurements meet the requirements of Australian Standard 3894.5-2002 (Surface Profile), and as far as we can ascertain it is the only gauge available which complies with the requirements of this Australia Standard. Design of the unit permits accuracies equivalent to an electronic surface trace.
Used by members of the Australian Corrosion and Pipe Coaters Association.

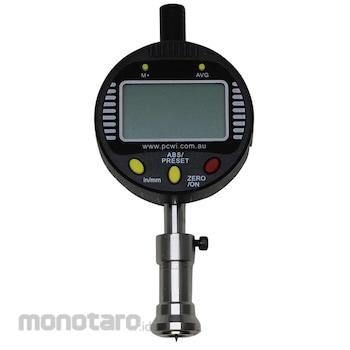

PCWI Surface Profile Gauge 30 Degree
#Grup produk P112532828
Spesifikasi
| Accuracy (µm) | +/- 2 |
|---|---|
| Gauge Face Diameter (mm) | Analogue = 50/Digital = 42 |
| Range (µm) | 0 to 5000 |
| Resolution (mm) | 0.001 |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Feature
- Gives maximum peak to average valley height.- Design of the unit permits accuracies equivalent to an electronic surface profile trace.
- The size (57mm diam) of this unit makes it easy to use and easy to balance on the surface.
- This Gauge works on grit sand shot blasted and saw cut surfaces.
- The Digital gauge can also measure, the depth of pits, cracks, craters and scratches of the outer (in some instances it would do the inside) surfaces of steel structures, pipes and concrete.
- Enables quick assessment of surface condition. If a hole is made in the coating to the substrate, the gauge will also function as a coating thickness gauge.
- Available as metric/imperial.
- The reading maximum range is user adjustable.
