The PCWI Wet Sponge Porosity Detector is designed to non-destructively detect pinholes in coatings up to 500um using the "wet sponge method". A voltage from the battery supply is transmitted through the probe and dampened sponge attached. Because the instrument's earth is connected to the substrate, when a flaw is encountered, the conductive path is made and the alarm sounds.
The unit features three test voltage options; 9V for coatings up to 300um, 67.5V for coating assessment to ASTM standards, and 90V for coatings up to 500um.

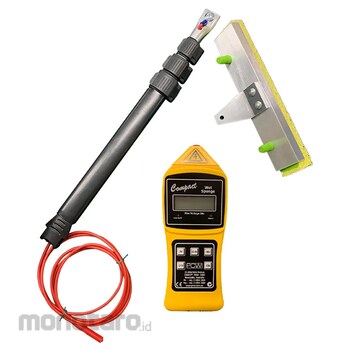

Kit includes: Unit and Handle including Sponge, belt/pocket clip, seven metre earth lead and clip, carry case, instruction manual with calibration certificate.
Complies with the requirements of:
AS3894.1-2002 (Wet Sponge Testing); ASTM G62-07; ASTM G60-07; ASTM D5162-08; Nace Standards: RP0274-2004 & SP0188-2006
PCWI Low Voltage Pinhole Detector Kit
#Grup produk P112532448
Spesifikasi
| Accuracy | +5% to -10% |
|---|---|
| Alarm | Audible and Visual |
| Battery Life (hour) | 8 continuous (at 90V) |
| Dimensions (mm) | 210x75x35 |
| Duration (ms) | Audible 300 minimum |
| Operating Temperature (°C) | 0 to 50 |
| Power Battery (V) | 9 |
| Range (µm) | 0 to 500 |
| Sensitivity | The alarm will sound when the resistance drops below 90kohm (+/- 10%) |
| Telescopic Probe Length (mm to m) | 350 to 1.2 |
| Test Voltage (V) | 9, 67.5, 90 (selectable) |
