Spesifikasi
| ABS/INC (INC ZERO) | Yes |
|---|---|
| Auto Power OFF (After 20 Min. Non Use) | Yes |
| Battery Life | Approx. 2 years (under normal use) Approx. 4000 hours (continous use) |
| Calculation Function (With Formula) | Yes |
| Calibration Warning Function | Yes |
| Customizing Keys | Yes |
| Data Output | Digimatic S1 |
| Delivered | Including box, spanner, CR2032 battery, certificate of inspection |
| Display (mm) | LCD, character height 7.5 |
| Function Lock | Yes |
| GO/±NG Judgement | Yes |
| Hold | Yes |
| Low Voltage Alarm | Yes |
| Measuring Face | Carbide-tipped, micro-lap finish |
| Measuring Force | 7 - 12 |
| Measuring Spindle (mm) | With spindle lock, ø 6.35, spindle pitch 2 |
| On/Off | Yes |
| Power Supply | 1 battery CR2032 |
| Preset | Yes |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Informasi Produk
Description
Description

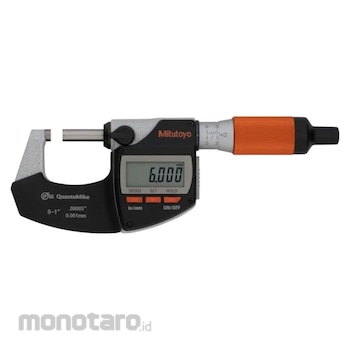

This is an IP65 micrometer offering movement four times as fast as a standard micrometer.
It presents you with the following benefits:
Faster measurement is achieved by using a coarser thread which feeds the spindle by 2 mm per thimble rotation.
Bidirectional communication e.g. to perform parameter setting from a PC (Digimatic S 1 interface) is possible.
Ratched thimble mechanism and a small design ensures easy single-handed or stand operation.
Equipped with a calibration schedule warning function.
GO/±NG judgement is performed by setting the upper and lower tolerance limits.
Approach speed warning function for reliable measurements.
Extraordinary battery life of 2 years (4000 h).
Outstanding accuracy refer to EN ISO 3611 JMPE ±1 µm (0-25, 25-50 mm model).
Excellent resistance against water and dust (IP65 protection level) enables this micrometer to be used in machining situations that include splashing coolant fluid.
A function lock protects the display against unauthorized use.
Visibility is improved by enlarging the display unit.
This is an IP65 micrometer offering movement four times as fast as a standard micrometer.
It presents you with the following benefits:
Faster measurement is achieved by using a coarser thread which feeds the spindle by 2 mm per thimble rotation.
Bidirectional communication e.g. to perform parameter setting from a PC (Digimatic S 1 interface) is possible.
Ratched thimble mechanism and a small design ensures easy single-handed or stand operation.
Equipped with a calibration schedule warning function.
GO/±NG judgement is performed by setting the upper and lower tolerance limits.
Approach speed warning function for reliable measurements.
Extraordinary battery life of 2 years (4000 h).
Outstanding accuracy refer to EN ISO 3611 JMPE ±1 µm (0-25, 25-50 mm model).
Excellent resistance against water and dust (IP65 protection level) enables this micrometer to be used in machining situations that include splashing coolant fluid.
A function lock protects the display against unauthorized use.
Visibility is improved by enlarging the display unit.
