Description
This is an externally-powered Digimatic Indicator with a N-ch open drain –NG, OK, +NG output.Dust-protected and protected against splashing water, complying with IEC 60529 (equivalent to IP54)Measures MAX/MIN/RANGE (run-out value).Saves three different Preset and Tolerance settings.Fast measurement frequency mode (detection cycle 50 times/s) for reliable measurement in the peak detection mode (MAX/MIN/RANGE)Calculation function Ax. Coefficient A freely definable, x = displacement of the plungerAnalogue bar graph in the display (12 different scales switchable)GO/±NG tolerance judgment function

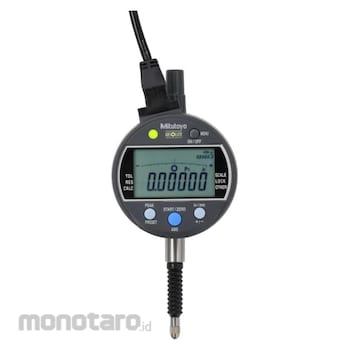

Mitutoyo Digital Indicator Signal
#Grup produk P112529277
Spesifikasi
| ABS/INC (INC ZERO) | Yes |
|---|---|
| Alarm | Low voltage, ABS composition error, overflow error, setting error |
| Analog Bar Resolution Switchable | Yes |
| Calculation Function (With Formula) | Yes |
| Contact point | Carbide ball, thread: No.4-48UNF |
| Counting Direction Switchable | Yes |
| Delivered | With signal cable 4 m. One end is fixed to the main unit. No connector is supplied for the other end. |
| Digimatic Data Output | Yes |
| Digital Scale | Electrostatic capacitance type absolute linear encoder |
| Digital Step | 0.00005inch/0.0001inch/0.0005inch/0.001mm/0.01mm |
| Digital/Analog | Digital |
| Display (mm/inch) | LCD, character height 8 |
| Function Lock | Yes |
| GO/±NG Judgement | Yes |
| GO/±NG Judgement via LED | Yes |
| H MPE (Hysteresis) (inch/mm) | 0.0001/0.002 |
| Inch-Metric | Inch/Metric |
| Inch/Metric Switchable | Yes |
| Mass | 295 |
| Max/Min/Range | Yes |
| Maximum Permissible Error E MPE (Total Range) (mm/inch) | ±0.0001/0.003 |
| Maximum Response Speed | Unlimited |
| Measurement Frequency (Max/Min/Range) | Standard mode: 100 times/s (plunger speed max. 0.1mm/s for peak measurement) |
| Measuring Force Mpl | ≤2.5 N |
| On/Off | Yes |
| Power Supply | 1 battery CR2032 |
| Preset 3X | Yes |
| Protection | IP54 |
| RMPE (Repeatability) (mm/inch) | 0.0001/0.002 |
| Range (inch/mm) | 0.5/12.7 |
| Signal Input | No-voltage input, (PRESET_RECALL/ZERO:Yes |
| Signal Output | (+NG, OK, -NG):Yes |
| Stem ∅ (mm) | 9.52 |
| Type | ASME/ANSI/AGD Standard |
