Description
This indicator is the MAX/MIN/RANGE value holding function model
It offers the following benefits:
The MAX/MIN/RANGE (run-out value) can be measured.
A fast measurement frequency mode(detection cycle 20 ms or 50 times/s) is selectable to measure in the peak detection mode (MAX/MIN/RANGE) more reliably.
Easy indicator setup via a setup menu.
Analogue bar graph in the display (12 different scales switchable).
GO/±NG tolerance judgement function.
This indicator enables the use of a calculation function for the measured value Ax.
Coefficient A is freely definable and x = displacement of the plunger.
A USB interface box can be used to set up the indicator from PC via dedicated software.

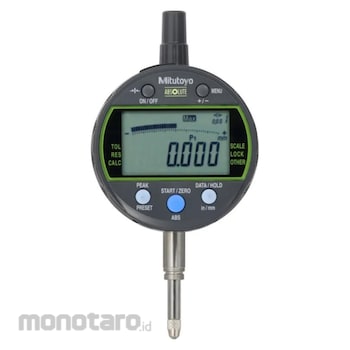

Mitutoyo Digital Indicator Peak
#Grup produk P112529259
Spesifikasi
| ABS/INC (INC ZERO) | Yes |
|---|---|
| ABS/INC Switchable | Yes |
| Alarm | Low voltage, ABS composition error, overflow error, setting error |
| Analog Bar Resolution Switchable | Yes |
| Battery Life | Standard mode: approx. 1 year fast mode: approx. 4.5 month |
| Calculation Function (With Formula) | Yes |
| Contact point | Carbide ball, thread: M2.5x0.45 |
| Counting Direction Switchable | Yes |
| Data/Hold | Yes |
| Delivered | Including CR2032 battery, certificate of inspection |
| Digimatic Data Output | Yes |
| Digital Scale | Electrostatic capacitance type absolute linear encoder |
| Digital Step | 0.00005inch/0.0001inch/0.0005inch/0.001mm/0.01mm |
| Digital Step Switchable | Yes |
| Digital/Analog | Digital |
| Display (mm) | LCD, character height 8, 330° rotatable |
| Fast Measurement Mode | Yes |
| Function Lock | Yes |
| GO/±NG Judgement | Yes |
| H MPE (Hysteresis) (inch/mm) | 0.0001/0.002 |
| Inch-Metric | Inch/Metric |
| Inch/Metric Switchable | Yes |
| Low Voltage Alarm | Yes |
| Mass | 170 |
| Max. Permissible Error E Mpe (Total Range) (inch/mm) | ±0.0001/0.003 |
| Max/Min/Range | Yes |
| Maximum Response Speed | Unlimited |
| Measurement Frequency (Max/Min/Range) | Standard mode: 10 times/s fast mode: 50 times/s (plunger speed max. 50 µm/s for peak measurement) |
| Measuring Force Mpl | ≤1.5 N |
| On/Off | Yes |
| Power Supply | 1 battery CR2032 |
| Preset 3X | Yes |
| Protection | IP42 |
| R MPE (Repeatability) (inch/mm) | 0.0001/0.002 |
| Range (inch/mm) | 0.5/12.7 |
| Stem ∅ (mm) | 8 |
| Type | EN ISO Standard |
