Description
This indicator allows you to use a calculation function for the measured value
Ax+B+Cx-1The integrated calculation formula is useful in a variety of applications (e.g. roll diameter measurement)Coefficients A,B and C are freely definable. X = displacement of the plungerAnalogue bar graph in the display (14 different scales switchable) GO/±NG tolerance judgement functionMAX/MIN/RANGE function to measure peak valuesA fast measurement frequency mode(detection cycle 20 ms or 50 times/s) is selectable to measure in the peak detection mode (MAX/MIN/RANGE) more reliablyEasy indicator setup via a setup menuA USB interface box can be used to set up the indicator from PC via dedicated software

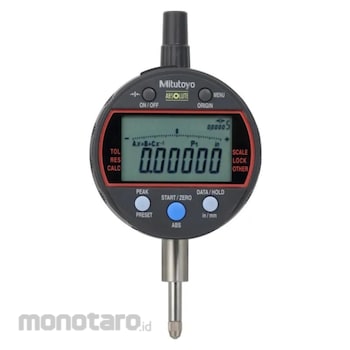

Mitutoyo Digital Indicator Calculation
#Grup produk P112529213
Sebelum PPN:
Rp8.399.900 - Rp10.999.900
Ketersediaan:
Periksa Metode Pembayaran dan Estimasi pengiriman
Spesifikasi
| ABS/INC (INC ZERO) | Yes |
|---|---|
| ABS/INC Switchable | Yes |
| Alarm | Low voltage, ABS composition error, overflow error, setting error |
| Analog Bar Resolution Switchable | Yes |
| Battery Life | Standard mode: approx. 1 year fast mode: approx. 4.5 month |
| Calculation Function (With Formula) | Yes |
| Counting Direction Switchable | Yes |
| Data/Hold | Yes |
| Digimatic Data Output | Yes |
| Digital Scale | Electrostatic capacitance type absolute linear encoder |
| Digital/Analog | Digital |
| Display (mm) | LCD, character height 8, 330° rotatable |
| Fast Measurement Mode | Yes |
| Function Lock | Yes |
| GO/±NG Judgement | Yes |
| Low Voltage Alarm | Yes |
| Max/Min/Range | Yes |
| Maximum Response Speed | Unlimited |
| Measurement Frequency (Max/Min/Range) | Standard mode: 10 times/s fast mode: 50 times/s (plunger speed max. 50 µm/s for peak measurement) |
| On/Off | Yes |
| Power Supply | 1 battery CR2032 |
| Preset 3X | Yes |
| Protection | IP42 |
| Remarks | Digital step is switchable (12 steps) |
| Selectable Resolution | Yes |
