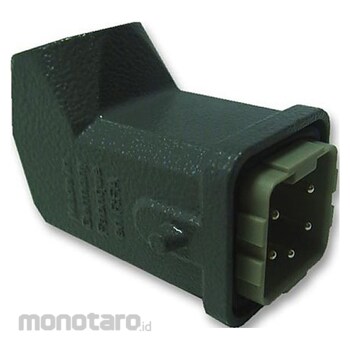

HARTING Hood + Male Insert Side Entry 3A
#Grup produk P112523811
Spesifikasi
| AS ONE Part Number | 65-1418-66 |
|---|
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Feature
Specification Product Group: Han Series Connector Mount: Cable Mount Type: Plug Number of Contacts: 3 Contact Type: Pin Number of Rows: 2 Contact Termination Type: Screw Connector Shell Size: 3A Contact Material: Copper Contact Plating: - SVHC: No SVHC(15- Jan-2018) Conduit Thread Size: M20 Connector Type: Square Power Contact Resistance: 1mΩ Contact Termination: Screw Rated Current: 10A IP/NEMA Rating: IP65 Material: Die-cast Zinc Number of Mating Cycles: 500 Maximum Operating Temperature: 125- C Minimum operating temperature: -40-C Termination method: Screw Rated voltage VAC: 600V Maximum wire area size: 2.5mm Minimum wire area size: 1mm Maximum wire size AWG: 12AWG Minimum wire size AWG: 20AWG Operating voltage: 400VUlasan Produk
