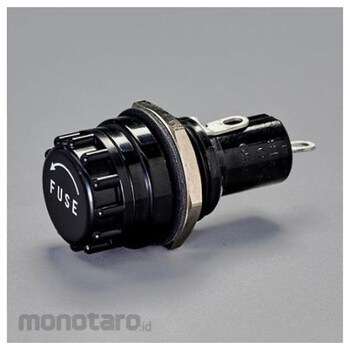

ESCO 250V/30A[10.31x38.1mm] Fuse holder, cylindrical
#Grup produk P112513735
Spesifikasi
| AS ONE Part Number | 65-9314-26 |
|---|
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Precautions for use: 1. The bottom terminal is movable, so do not allow wires to impede the terminal's movement. After wiring, pay attention to the surrounding wiring so that tension on the lead wires is not applied to the terminal.
Feature
Specification ●Rating: 250V 30A●Compatible fuse (mm): Φ10.31x38.1●Terminal fittings: Soldering terminal●Material: Body/Phenol (UL94V-0) Knob/Epoxy (UL94V-0)●Insulation resistance: DC500V, 100MΩ or more●Withstand voltage: AC2000V (1 minute)●Mounting plate thickness: 5.0mm (maximum)●Nut tightening strength: 2.0N.m●Nut two-face width: 28mm●Screw-type knobUlasan Produk
