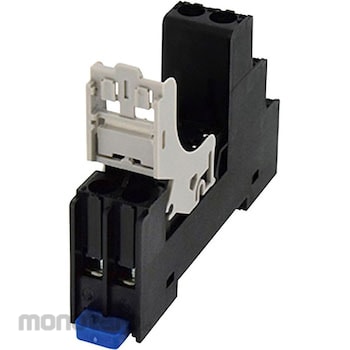

IDEC SJ Series Relay Socket Finger Protect Screw Terminal Type
#Grup produk P112508070
Spesifikasi
| Compatible Cable (mm²) | 2 |
|---|---|
| Impact Resistance Durability (m/s²) | 1000 |
| Insulation Resistance (MΩ) | 100 or more (with DC500V mega) |
| Operating Ambient Humidity (%RH) | 5 to 85 (no condensation) |
| Protection Class | IP20(IEC 60529) |
| Rated Insulation Voltage (V) | AC/DC250 |
| Recommended Tightening Torque Range (N m) | 1.0 |
| Storage Humidity (%RH) | 5 to 85 (no condensation) |
| Storage Temperature (°C) | -55 to 85 (but no freezing) |
| Terminal Shape | M3 ± both screws (self-up) |
| Terminal Strength (N) | Wire tension: 50 or more |
| Type | Finger protection screw terminal type |
| Vibration Resistance | Frequency 10-55Hz, single amplitude: 0.75mm |
| Vibration Resistance (m/s²) | 90 |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
