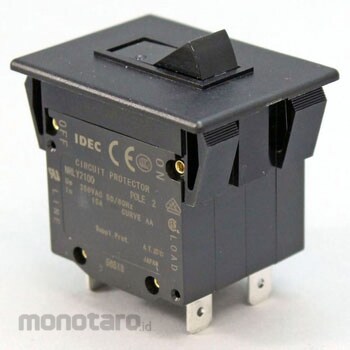

IDEC NRL Series Circuit Protector
#Grup produk P112505037
Spesifikasi
| Ambient Reference Temperature (°C) | 25 |
|---|---|
| Attached Device | None |
| Auxiliary Contact | 1c micro switch, AC125V/3A (resistance load), DC30V/2A (resistance load) |
| Durability | Electrical: 10,000 times or more (6 times/min), Mechanical: 20,000 times or more (6 times/min) |
| Insulation Resistance (MΩ) | 100 or more (with DC500V mega) |
| Maximum Tightening Torque (N m) | 45 to 85 (no condensation) |
| Minimum load | AC/DC24V . 100mA (reference value) |
| Operating Ambient Humidity (%RH) | 45 to 85 (no condensation) |
| Protection Method | Fluid electromagnetic trip method |
| Shock Resistance | 500m/s² (durability, malfunction) (conditions: when rated current is applied, but auxiliary contacts are 360m/s² ) |
| Storage Temperature (°C) | -40 to 85 (but no freezing) |
| Terminal Shape | (Main terminal) Tab 250 type terminal |
| Vibration Resistance | 100m/s² (10 to 55Hz) (conditions: when rated current is applied) |
| Withstand Voltage (V/minute) | Between live parts and earth, between opposite polarity terminals, between same polarity terminals (in open circuit), between main circuit and auxiliary contacts AC2000 |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
