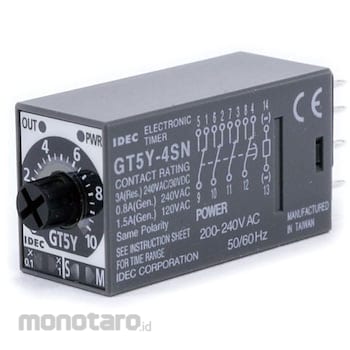

IDEC GT5Y small timer
#Grup produk P112500917
Spesifikasi
| Applicable Standard | UL508, CSA C22.2 No.14, EN61812-1 |
|---|---|
| Dimensions, H x W x D (mm) | 27.5x21.0x58.6 |
| Inductive load (A) | Rated load: AC220V / 2, DC30V / 2.5, Maximum switching capacity: AC440VA . DC75W |
| Installation Altitude (m) | (When using) 0-2000, (when transporting) 0-3000 |
| Insulation Resistance (MΩ) | (At DC500V mega) 100 or more |
| Mechanical life | 50 million times or more |
| Minimum Applicable Load | DC5V/20mA, DC24V/10mA |
| Operating Frequency (operation/hour) | 1800 |
| Operating Temperature/Humidity Range | -10 to 55 degrees / 35 to 85% RH (no freezing or condensation) |
| Operating Time Variation | ±0.2%20ms |
| Pollution Degree (Environment to Use) | 2(IEC60664-1) |
| Protection Class | IP40 (main unit), IP20 (socket): IEC 60529 |
| Resistive load | Rated load: AC220V / 5A . DC30V / 5A, Maximum switching capacity: AC1100VA . DC150W |
| Return Time (ms) | under 100 |
| Return Voltage | Rated voltage x 20% or more |
| Setting Error | ±10% |
| Shock Resistance (m/s²) | Malfunction: 98, durability: 490, XYZ direction 3 times each |
| Specification | Overvoltage category: III (IEC60664-1) |
| Storage Temperature / Humidity Range | -30 to 80/35 to 85% RH (No freezing and no condensation) |
| Temperature Error | ±3% |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Feature
Operating time variation: ±0.2% ±20ms or less Miniature size for space saving OUT (output)/POWER (power supply) LED displayUlasan Produk
