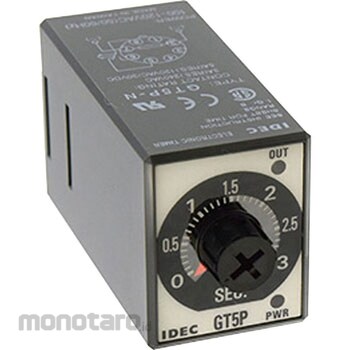

IDEC GT5P small timer
#Grup produk P112500874
Spesifikasi
| Contact Configuration | 1c |
|---|---|
| Dimensions, H x W x D (mm) | 36x29x81.5 |
| Durability | Electrical: 100,000 times or more (at rated resistive load), Mechanical: 20 million times or more |
| Installation Altitude (m) | 0 to 2000 (when in use), 0 to 3000 (when transported) |
| Insulation Resistance (MΩ) | 100 or more (DC500V mega) |
| Maximum Switching Voltage (V) | AC250/DC125 |
| Maximum switching Current | 5A |
| Maximum switching capacity | AC960VA/DC120W |
| Operating Time Variation | ±0.2%, ±10ms |
| Output | DC24V/AC120V . 5A AC240V . 3A |
| Pollution Degree (Environment to Use) | 2(IEC60664-1) |
| Rated Load | [Resistive load] AC240V/3A, AC120V/DC24V/5A [Inductive load] AC240V/0.8A, AC120V/1.4A, DC24V/1.7A (cosΦ=0.4L/R=15ms) |
| Return Time | 100 ms or less |
| Setting Error | ±10% |
| Shock Resistance (m/s²) | Malfunction: 98, Durability: 490 |
| Specification | External protection element: Fast acting fuse 200V/5A |
| Storage Temperature (°C) | -30 to 70 (no freezing) |
| Temperature Error | ±3% |
| Vibration Resistance | [Durability] 10 to 55 Hz, half amplitude 0.75 mm, 2 hours each in XYZ direction / [Malfunction] NO contact: 10 to 55 Hz, half amplitude 0.5 mm, NC contact: 10 to 55 Hz, half amplitude 0.35 mm, 10 minutes each in XYZ direction |
| Withstand Voltage (V/minute) | Between power supply voltage terminal and output contact: AC2000, Between opposite polarity contacts of output relay: AC2000, Between same polarity contacts of output relay: AC750 |
