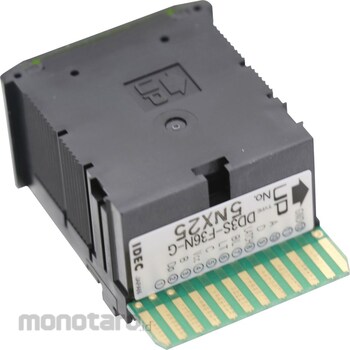

IDEC DD3S Series
#Grup produk P112499532
Spesifikasi
| Current Consumption (mA) | 40 or less |
|---|---|
| Display Function | Hexadecimal display |
| Input Logic | Negative logic |
| Inrush Current (A) | Approx. 0.3 (power supply voltage 24V) |
| LED Color | Green |
| Noise resistance | Power supply terminal (normal/common mode): ±1000V, input terminal (normal/common mode): ±1000V, output terminal (normal/common mode): ±500V (impulse conditions: pulse width 100ns, 1μs) |
| Number of Digits | Up to 8 digits can be combined arbitrarily |
| Operating Ambient Humidity (%RH) | 35 to 85 (with no condensation) |
| Operating Voltage Range (V) | DC12~24±10% |
| Protection Class | IP40(IEC 60529) |
| Shock Resistance (m/s²) | Durability: 490 |
| Specification | ●Data input (V): L: 0 to 2, H: 9 to 30●Display characters: 7-segment, green, display: 0 to 9, A to F, decimal point●Unit combination: Fit-in type●Panel mounting method: Snap-on |
| Storage Temperature (°C) | -25-80 (no icing) |
| Type | Standard |
| Vibration Resistance | Durability: Frequency 10-55Hz, single amplitude 0.25mm |
| Withstand Voltage (V/minute) | DC1500 between live parts and non-live parts |
