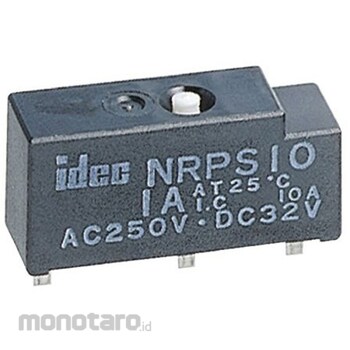

IDEC Circuit breaker
#Grup produk P112498870
Spesifikasi
| AS ONE Part Number | 65-8090-31 |
|---|---|
| Ambient Reference Temperature (°C) | 25 |
| Chip breaker | MCB (circuit) |
| Contact Configuration | 1b |
| Cord | 318-4505 |
| Durability | 200 times (at 200% TRIP of rated current) |
| Insulation Resistance (MΩ) | 100 or more (with DC500V mega) |
| Internal circuit | Series trip |
| Length (mm) | 11.4 |
| Maximum Tightening Torque (N m) | 45 to 85 (no condensation) |
| Minimum Applicable Load | AC/DC 5V, 100mA (reference value) |
| Number of Poles | 1 |
| Operating Ambient Humidity (%RH) | 45 to 85 (no condensation) |
| Protection Method | Thermal trip system |
| Rated Breaking Capacity (A) | Rated current x 10 times (resistive load) |
| Rated Current (A) | 3.15 |
| Rated Voltage (V) | DC32, AC250(50/60Hz) |
| Series | NRP |
| Shock Resistance | Endurance: 1000m/s² , Malfunction: 500m/s² |
| Storage Temperature (°C) | -30 to 70 (but no freezing) |
| Type | Straight type, non-sealed |
| Vibration Resistance | 100m/s²(10~55Hz) |
| Width (mm) | 22 |
| Withstand Voltage (V/minute) | Between the same terminals (in open circuit state), between the live part and earth: AC1500 (50/60Hz) |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Feature
UL listed, CSA listed approved. Unless otherwise specified, all CBEs are manufactured by ETA Circuit Breakers Ltd.Breaker NRPS type
It is an ultra-compact SIL type that uses IC terminal pitch and can be directly mounted on a PC board. It does not malfunction (shut off) due to deterioration caused by inrush currents, as with fuses.
