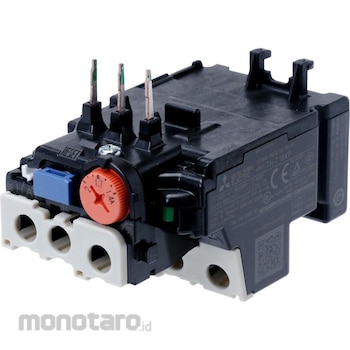

Mitsubishi Electric Thermal Relay TH-T Series
#Grup produk P112485715
Spesifikasi
| Ambient Temperature (°C) | -10 to 40 (standard temperature is 20, maximum temperature inside the panel is 55) |
|---|---|
| Applicable Frequency (Hz) | 0(DC) to 400 |
| Applicable wire size | Main circuit: Φ1.6, 0.75-2.5mm² , Operation circuit: Φ1.6, 0.75-2.5mm² |
| Auxiliary Contact | 1a1b |
| Frame | T18 |
| Function | Trip free, operation indication (lever indication), manual trip check |
| Length (mm) | 55 |
| Mass (kg) | 0.11 |
| Minimum Applicable Load | 20V 5mA |
| Open thermal Current (A) | 2 |
| Pollution Degree (Environment to Use) | 3 |
| Power Consumption (VA) | Settling: min 0.8, max 1.8 |
| Rated Impulse Withstand Voltage (kV) | 6 |
| Rated Insulation Voltage (V) | 690 |
| Screw Size | Main circuit terminal: M3.5, Auxiliary terminal: M3.5 |
| Size | Crimp terminal: Main circuit/1.25-3.5 to 2-3.5, 5.5-S3, Operation circuit/1.25-3.5 to 2-3.5 |
| Standard | JIS C8201-4-1, IEC60947-4-1, EN IEC60947-4-1, BS EN60947-4-1, DIN EN60947-4-1(VDE0660-102) |
| Thickness (mm) | 76.5 |
| Type | TH-T |
| Type of Resetting | (Thermal relay) Manual reset type |
| Vibration Resistance | 10 to 55Hz 19.6m/s² |
| Vibration Resistance (m/s²) | 19.6(10 to 55Hz) |
| Width (mm) | 45 |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Warning
By combining the T18 frame with the UT-HZ18, it can be used alone (screw mounting or IEC 35mm rail mounting). For single T25 frame mounting, IEC 35mm rail mounting is possible by combining with UN-RM20.Feature
Easy current setting. Motor current direct setting, ± can be adjusted with any driver. Manual check is possible. Manual trip is possible with a screwdriver from the surface. Top-free structure with operation display.Use
General overload / restraint protection for motorsUlasan Produk
